4.3 Inch Serial Port HMI

4.3 Inch Serial Port HMI

1: 4.3 inch serial port hmi RS232
2: 4.3 inch serial port hmi RS485
3: 4.3 inch serial port hmi RS422

Product Introduction

Introduction

The 4.3 Inch Serial Port HMI has a powerful database with a real-time database to store various data, such as analog, discrete, character type, etc., to realize data exchange with external devices. Secondly, we have a programmable command language. There is a programmable command language so that users can program according to their needs and rub a strong graphical interface. Finally, our products have the feature of ruggedness and durability.


Our company combines international advanced technology, constantly exploring in practice, and has always been in a leading position in the 4.3 Inch Serial Port HMI industry.  Enterprise culture is the concentrated embodiment of enterprise spirit, excellent quality, value pursuit, civilized behavior, and credibility image. Our factory has strong funds, introduced advanced technology, and has achieved good business performance in the market, providing long-term services and products for famous domestic and foreign brands.


Feature

The 4.3 Inch Serial Port HMI has careful system safety precautions, giving different operating rights to different operators to ensure the safe and reliable operation of the entire system. Secondly, we support offline and online simulation, quickly verify your design effect, facilitate design and debugging, greatly reduce the burden of software developers in human-machine interface development and improve development efficiency, focus on the development of professional products, and avoid repetitive labor. The product development cycle is greatly shortened for you. Finally, our displays are touch-enabled for intuitive operator control.


Product Models


Module

Specifications

AMZ043W01RDG

4.3-inch serial port hmi, 10 to 30 V, a single serial port: RS232 / RS485 / RS422, 128 Mbyte SPI Nand, Resistive touch screen

AMZ043W01RDGE

4.3-inch serial port hmi, 10 to 30 V, serial port 1: RS232 / RS485 / RS422, serial port 2: RS232, 128Mbyte SPI Nand Flash, Resistive touch screen

AMZ043W01RDGD

4.3-inch serial port hmi, 10 to 30 V, serial port 1: RS232 / RS485 / RS422, serial port 2: RS485, 128Mbyte SPI Nand Flash, Resistive touch screen

AMZ043W01RAA

4.3-inch serial port hmi, 10 to 30 V, a single serial port: RS232 / RS485 / RS422, 128 Mbyte SPI Nand, Resistive touch screen, Black housing

AMZ043W01RAAE

4.3-inch serial port hmi, 10 to 30 V, serial port 1: RS232 / RS485 / RS422, serial port 2: RS232, 128Mbyte SPI Nand Flash, Resistive touch screen, Black housing

AMZ043W01RAAD

4.3-inch serial port hmi, 10 to 30 V, serial port 1: RS232/RS485/RS422, serial port 2: RS485, 128Mbyte SPI Nand Flash, Resistive touch screen, Black housing

AMZ043W01RAB

4.3-inch serial port hmi, 10 to 30 V, a single serial port: RS232 / RS485 / RS422, 128 Mbyte SPI Nand, Resistive touch screen, Blue Housing

AMZ043W01RABE

4.3-inch serial port hmi, 10 to 30 V, serial port 1: RS232 / RS485 / RS422, serial port 2: RS232, 128Mbyte SPI Nand Flash, Resistive touch screen, Blue Housing

AMZ043W01RABD

4.3-inch serial port hmi, 10 to 30 V, serial port 1: RS232 / RS485 / RS422, serial port 2: RS485, 128Mbyte SPI Nand Flash, Resistive touch screen, Blue Housing



Power Voltage

DC10--30V

Backlight Adjustment

Support

Touch

4-wire resistive touchscreen

LCD resolution

480X272

USB1

Micro USB, Download port

USB2

TYPE-A, Download port

LCD

TN TFT LCD, 300cd/m2

COM1 communication

RS232/RS485/RS422 communication (3 choose 1)

COM2 communication

RS232/RS485 communication (2 choose 1)

Storage

128Mbyte SPI NAND FLASH

Power Protection

To prevent the reverse, Distinguish the positive and negative poles of the power supply

RTC

Support

Save power failure data

Support

Download

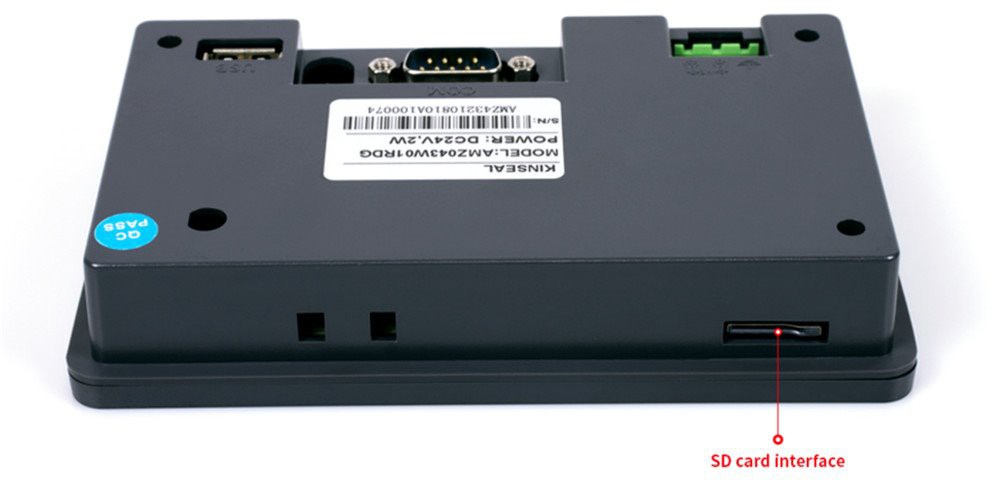

SD card, USB download, U disk


Products Size



Products Parameters

Product Specification

Hardware Performance

Module

AMZ043W01R

Display Size

4.3" TFT LCD

Resolution

480X272

Colors

260000

Brightness

300 cd/m2

Backlight

LED

LED life

20000 hours

Touch screen

4-wire resistive touch screen (Surface hardness 4H)

CPU

32-bit 600MHz ARM9 built-in 32MB DDR2 memory

Memory

128Mbyte SPI Nand Flash

RTC

Real-time clock built-in

Ethernet

Unsupported

Save power failure data

Support

USB1

A USB2.0 Device port

USB2

TYPE A USB, U-disk

Program download Mode

USB, U disk, SD card

U disk

Support

Communication port

COM1: RS232, RS485, RS422. (3 choose 1)
COM2: RS232, RS485d. (2 choose 1)

Electrical Specifications

Maximum power consumption

<2W

The rated voltage

DC 10-30V

Power protection

+/-2KV lightning surge protection capability

The allowed loss of power

<5ms

CE&ROHS

Comply with EN61000-6-2:2005, EN61000-6-4:2007 standards; Lightning surge +/ -2kV, EFT: +/ -4kV; Electrostatic contact discharge +/-8KV; Electrostatic air discharge +/-15KV.

Environmental Specifications

Operating temperature

-20℃~60℃

Storage temperature

-30℃~70℃

Environmental humidity

10~90% RH (non-condensing)

Vibration

10-25Hz (X, Y, Z direction, 2g/30 min)

Cooling way

Natural air cooling

The Other Parameters

Protection grade

The front panel conforms to IP65 (with flat plate cabinet installation), and the rear panel conforms to IP20

Display Active Area

95mmX54mm

Panel Cutout

130mmX78mm

Overall dimensions

138mmX86mm

The weight

149g


Definition of Terminal Pin
