Why Choose This HMI?
Still struggling with unstable communication, limited panel space, or complicated UI coding for your small-scale machinery?
The AMT028W124-L320X240R-XW-1D0C is a compact, cost-effective Human-Machine Interface designed for industrial equipment, smart appliances, and IoT terminals. With a built-in RS485 port, wide-voltage DC 9-30V input, and robust EMC protection, it delivers stable performance in noisy factory environments while saving your development time via our free HMIStudio software.
Key Features That Work for You
🛡️ Survives Harsh Industrial Environments
Passed ESD (±2KV), EFT Group Pulse (±2KV), and Lightning Surge (±250V) tests. Front panel complies with IP65 rating – resistant to dust and water splashes on the cabinet surface.
🔌 Seamless PLC & Sensor Integration
Native RS485 communication supports Modbus RTU and major PLC protocols (Mitsubishi, Siemens, Delta, etc.). Connect directly without extra converters.
⚡ Wide Voltage Input (DC 9-30V)
Designed for industrial power systems. Built-in anti-reverse connection and lightning surge protection ensure safety even in fluctuating power conditions.
🖱️ Precise 4-Wire Resistive Touch
Industrial-grade 4H surface hardness touch panel works reliably even with gloves or stylus – perfect for factory floors.
🧰 Drag-and-Drop UI Development
Comes with HMIStudio 5.1 software. Rich libraries of buttons, curves, alarms, and macro instructions (C-language) let you build a custom GUI in minutes, not weeks.
🌡️ Extra Built-in Utilities
Integrated RTC (real-time clock), buzzer, and temperature sensor (-70~+150℃) add functionality without extra components.
|
Category |
Specification |
Details |
|---|---|---|
|
Display |
Size / Resolution |
2.8" TFT LCD / 320×240 pixels |
|
Color / Brightness |
65,536 Colors / 250 cd/m² (LED backlight adjustable) |
|
|
Touch |
Type |
4-Wire Resistive Touch (Surface Hardness 4H) |
|
Performance |
CPU / Memory |
32-bit ARM9 @ 600MHz / 8MB DDR2 + 16MB SPI NOR Flash |
|
Interface |
Communication |
RS485 (COM1) |
|
Download / Expansion |
TYPE-C, TF Card Slot |
|
|
Electrical |
Voltage Range |
DC 9-30V (Anti-reverse connection) |
|
Power Consumption |
≤ 1W |
|
|
Environment |
Operating Temp. |
-10℃ ~ 50℃ |
|
Protection |
Front IP65, ESD/EFT/Surge Certified |
|
|
Mechanical |
Dimensions |

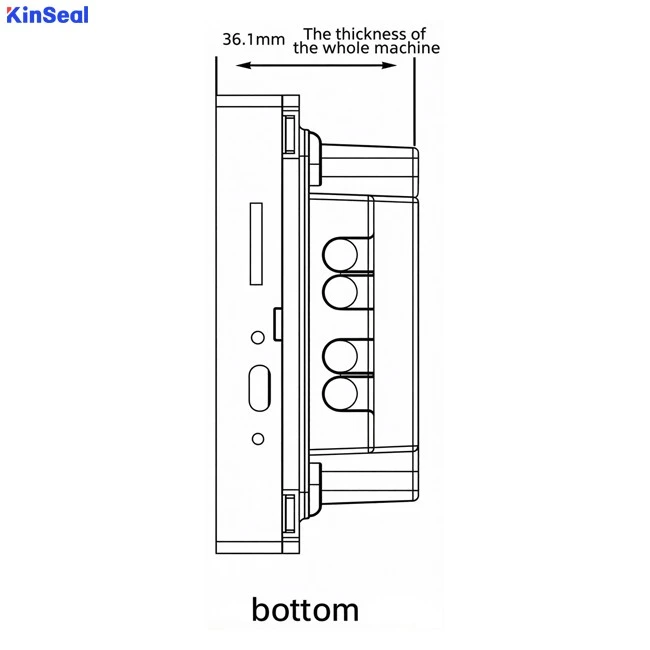

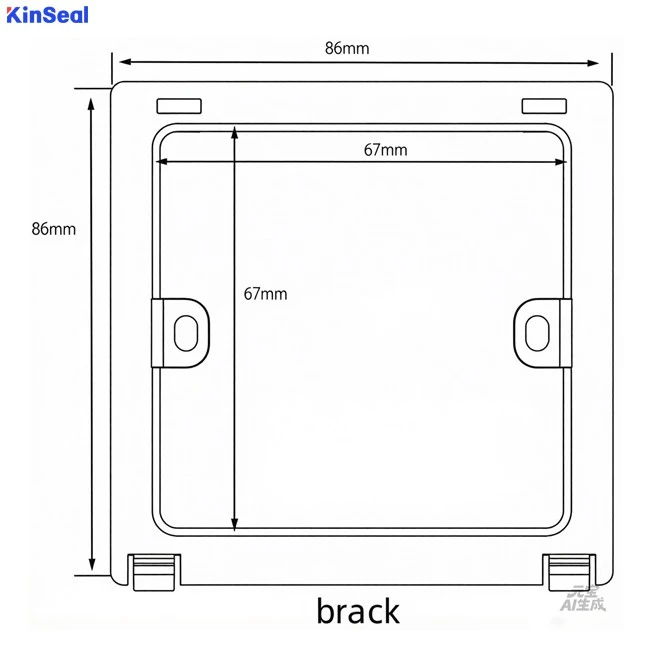

86 × 86 × 36.1 mm (Panel Cut-out: 68×65 mm) |
|
Weight |
115g |
Reliability & Certification
Engineered for longevity and compliance:
- ✅ CE & ROHS Compliant (EN61000-6-2:2005, EN61000-6-4:2007)
- ✅ Reliability Tests: High/Low Temp Aging, ESD, Group Pulse, Lightning Surge
- ✅ Natural Cooling design, 20,000 hours LED lifespan
Perfect For These Applications
- Industrial Automation Panels & PLC Control Stations
- Intelligent Household Appliances & HVAC Systems
- Medical Equipment Interfaces & Instrumentation
- Agricultural Machinery & Vehicle-mounted Terminals
We offer:
• ✔ Free HMIStudio Software & Technical Support
• ✔ Customization Services (UI Design, Firmware, Housing)
• ✔ Fast Sampling & Competitive Bulk Pricing
