No need to write underlying drivers-just plug in a TF card to get started. Industrial-grade reliability at a low cost, perfect for your device's human-machine interface!
✅ Why Choose It? (At a Glance)
Super Easy to Use
- Comes with HMILite PC configuration software: drag-and-drop controls to build interfaces without coding.
- Supports offline & online simulation: test your UI on a PC before downloading to the device, saving debugging time.
- Program download via TF card (FAT32, ≤32GB)-no debugger required.
Full-Featured for Most Scenarios

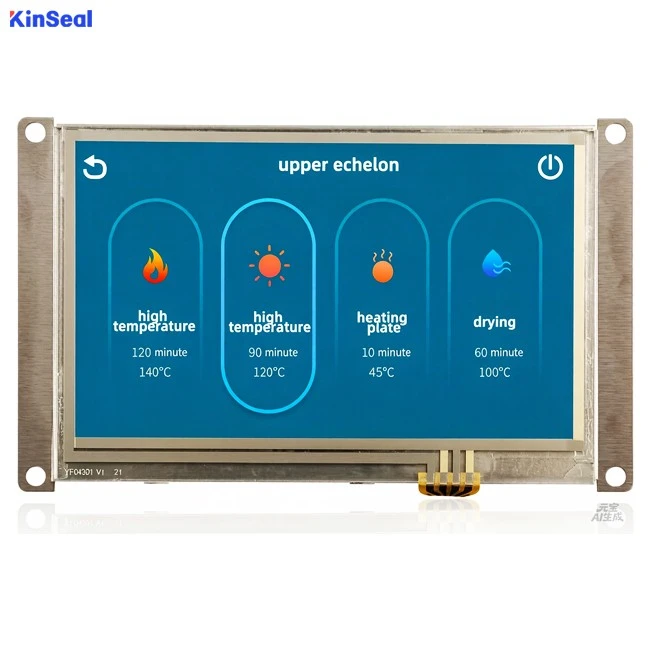

- Resistive touch + 480×272 HD color display with 260,000 colors for crisp visuals.
- Built-in buzzer and 3-second auto-save on power failure-no extra peripherals needed.
- Supports mainstream industrial protocols including Modbus, Siemens, Mitsubishi, Delta, etc. Compatible with both PLCs and MCUs.
Industrial-Grade Reliability = Fewer After-Sales Issues
- ESD Protection: ±3KV contact discharge, ±5KV air discharge-resists workshop static interference.
- Wide Operating Range: -10°C ~ 50°C operation, -30°C ~ 70°C storage-works across diverse climates.
- EFT Compliance: Meets National Standard Level 4, ensuring stable performance in harsh industrial environments.
- Long Backlight Life: 20,000-hour LED lifespan-no frequent replacements needed.
Flexible Customization for Your Needs
- Customizable boot logo, user-defined keyboards, and expandable image libraries for strong brand identity.
- Multi-language support (up to 4 languages) for export-ready devices.
- Multi-level user passwords, project encryption, and panel protection to prevent unauthorized changes or misoperation.
- Up to 128 configurable alarms with a scrolling dynamic alarm bar for instant fault visibility.

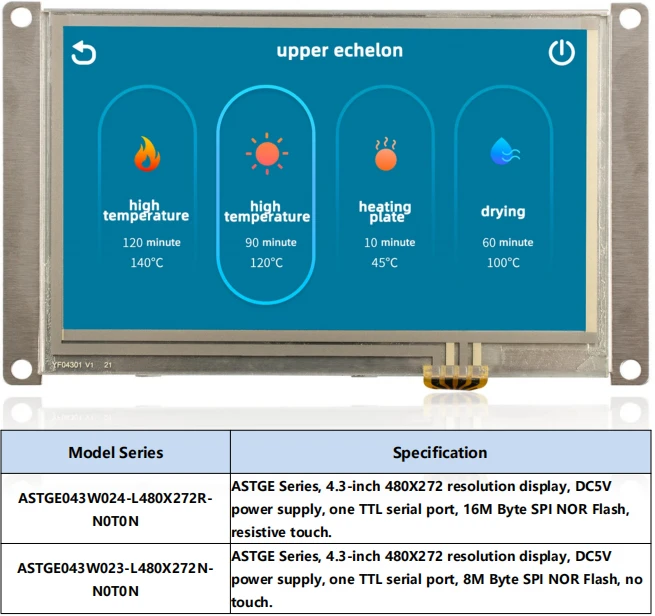

📋 Quick Specs (For Easy Selection)
|
Item |
Specification |
|---|---|
|
Screen Size |
4.3-inch TFT LCD |
|
Resolution |
480×272 |
|
Touch Type |
Resistive Touch (Standard) / No Touch (Economy Option) |
|
Storage |
16MB SPI NOR Flash (Touch Version) / 8MB SPI NOR Flash (Non-Touch Version) |
|
Power Supply |
DC 5V, Max Power Consumption: 1.7W |
|
Communication Interface |
1×TTL Serial Port (3.3V level), 5Pin PH2.0mm Terminal Block |
|
Overall Dimensions |

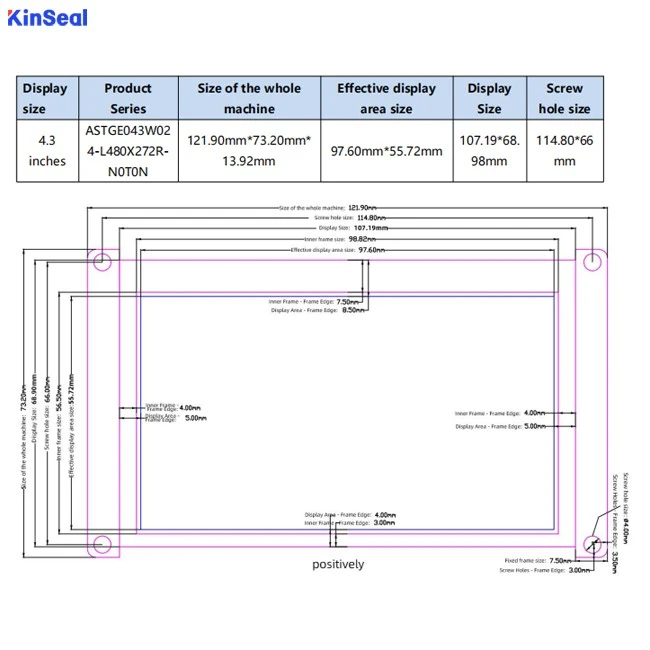

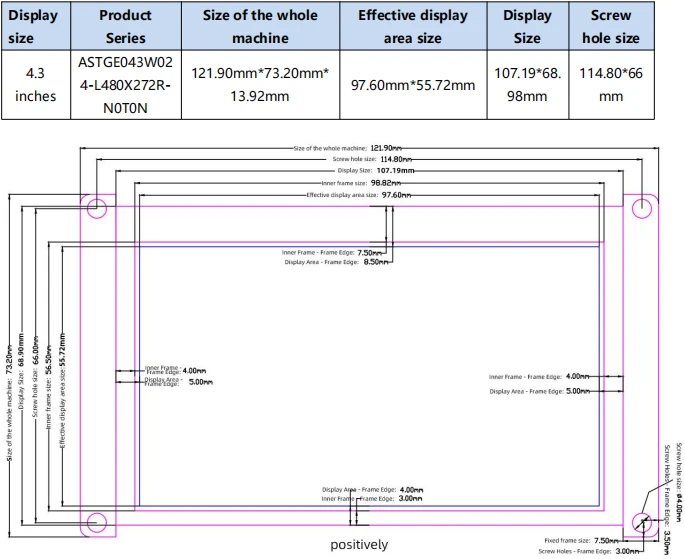

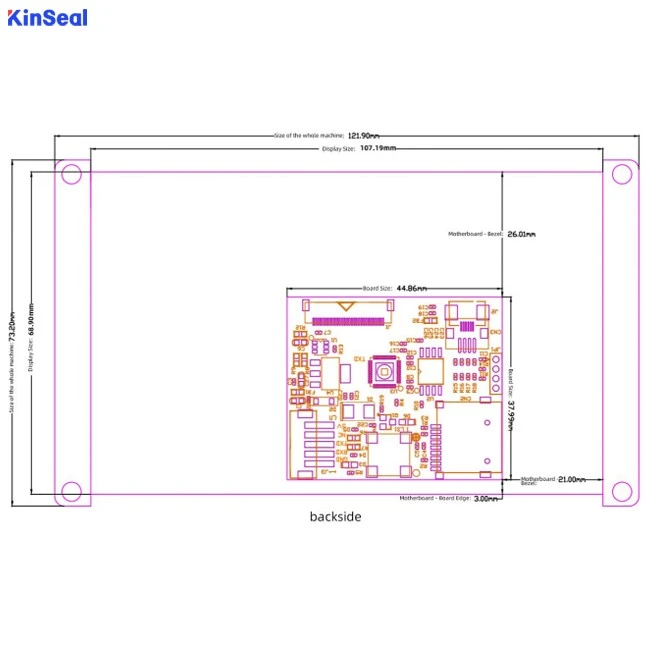

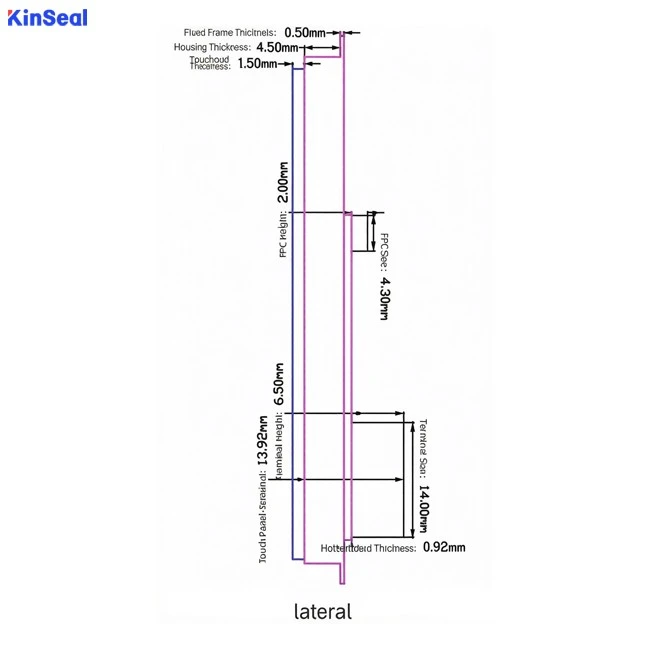

121.9×73.2×13.92mm, Mounting Hole Spacing: 114.8×66mm |
|
Weight |
82g |
🛠️ Typical Applications
- Operator panels for small automation equipment
- Data display terminals for instruments and meters
- Smart home control centers
- Status monitoring screens for industrial cabinets
- Interactive interfaces for commercial equipment (self-service kiosks, vending machines, etc.)
⚠️ Wiring & Usage Tips

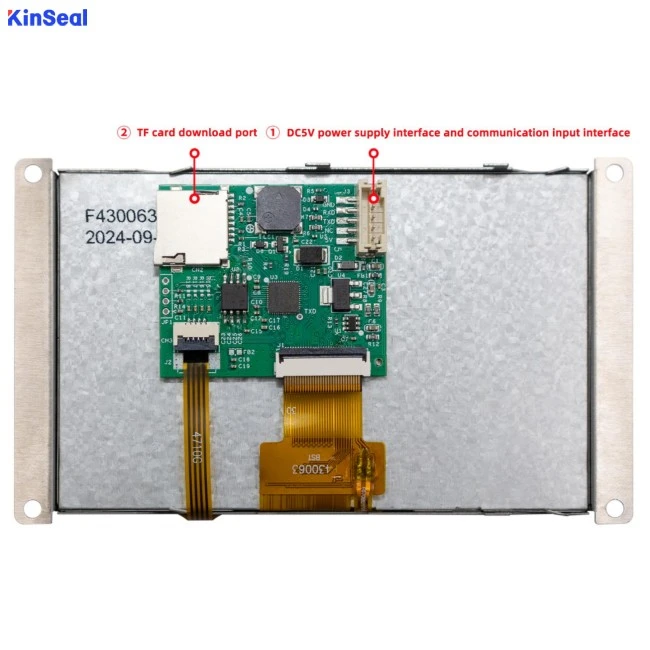

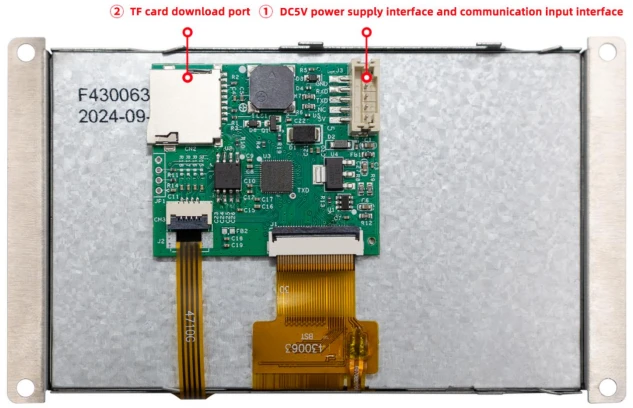

- 5-Pin Terminal Definition: Pin 1/4 = GND, Pin 2 = RXD, Pin 3 = TXD, Pin 5 = 5V. Double-check wiring before powering on to avoid damage.
- Use a TF card formatted to FAT32 with a capacity of 32GB or less for program downloads.
- Operating humidity: 10%~90% RH (non-condensing). Avoid long-term exposure to damp environments without proper enclosure.
