4-inch Square HMI

• Strong EMC immunity: ±2KV ESD, ±2KV electrical fast transient (EFT), and ±250V lightning surge protection; compliant with EN61000 industrial electromagnetic compatibility standards
• Excellent environmental adaptability: Operating temperature range of -10°C to 50°C, 10–90% RH non-condensing humidity tolerance, and 20,000-hour LED backlight lifespan
• Easy development: Paired with HMIStudio V5.1 PC configuration software, supporting offline/online simulation; compatible with Modbus, Mitsubishi, Siemens, Delta, and other PLC protocols; C-language macro instructions enable complex logic implementation

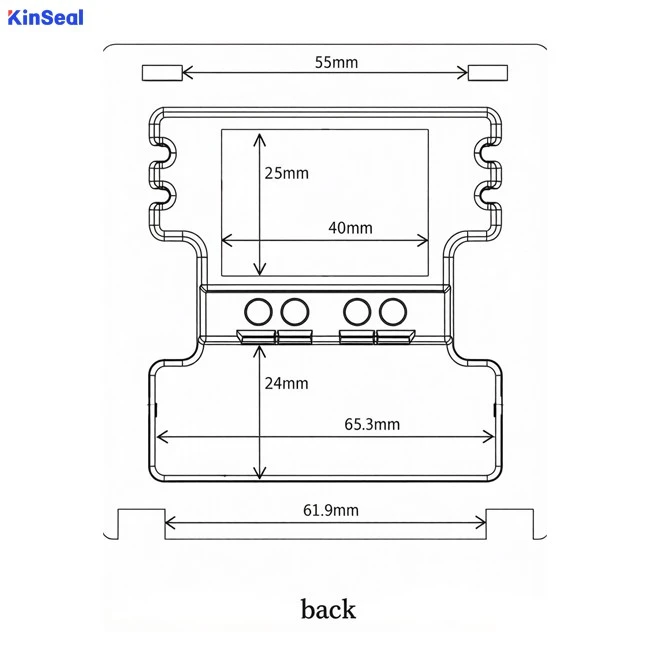

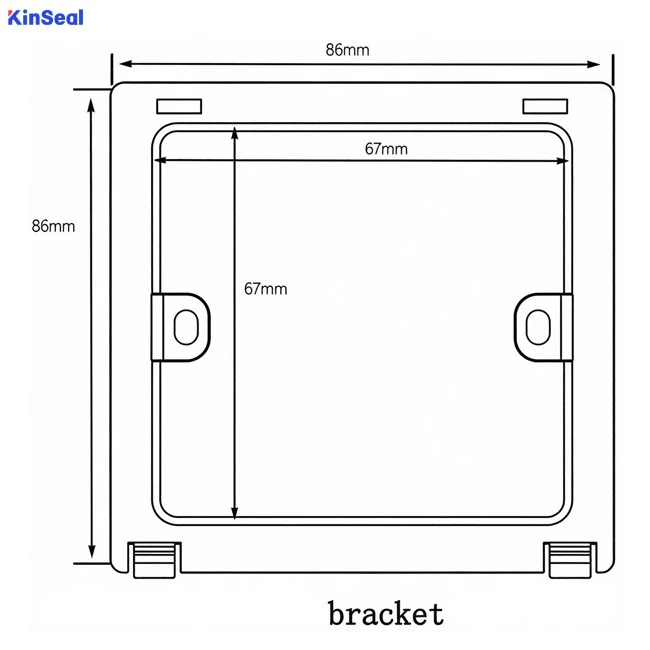

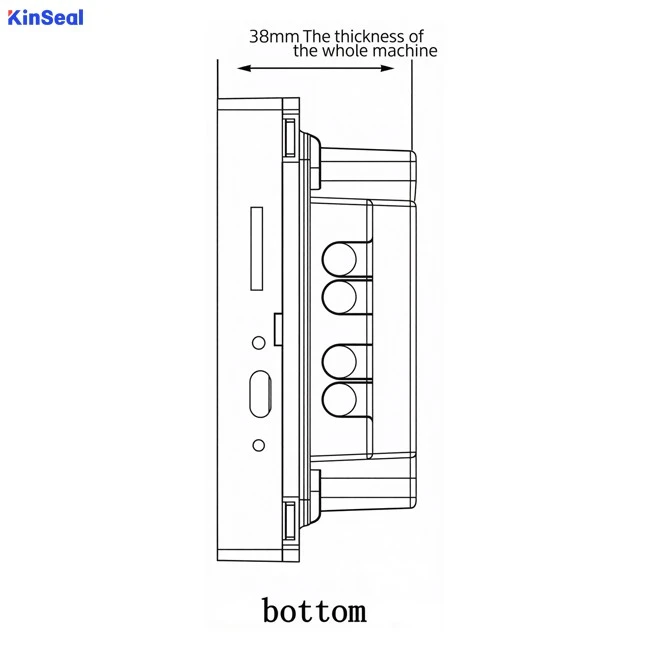

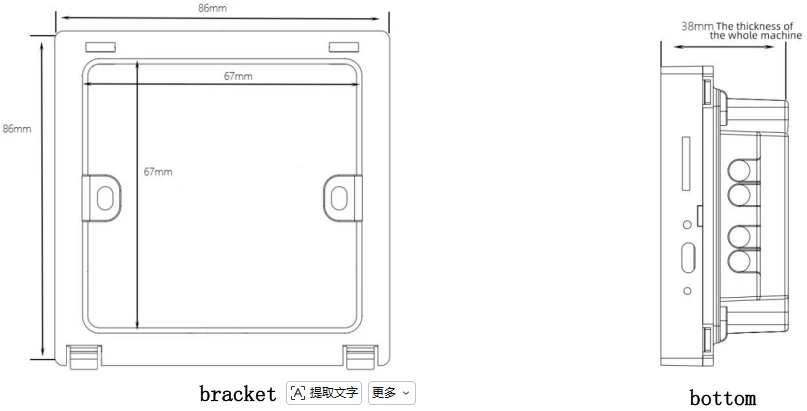

• Installation-friendly: 86×86mm standard housing, recommended cutout size 70×67mm, highly compatible with embedded installation requirements

This 4-inch HMI is designed specifically for industrial intelligent control-with smooth operation and crisp display, it's your reliable partner for equipment control:

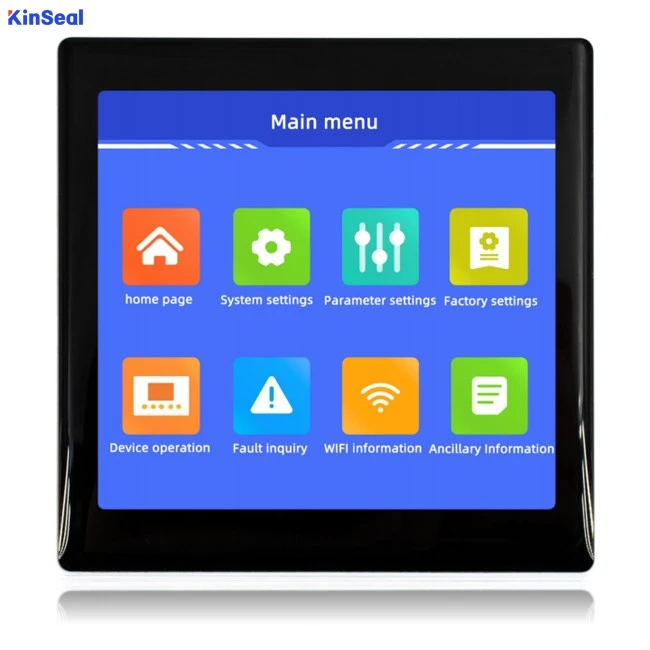

• Clear visuals: 480×480 high resolution, 16.7 million true colors, 350 cd/m² brightness-sharp images with minimal glare
• Precise touch response: 4H hardness capacitive touch screen, sensitive response, supports multi-touch logic for a smartphone-like user experience
• Stable performance: Wide voltage input resists power grid fluctuations; built-in lightning/surge protection ensures stable operation even in harsh industrial environments
• User-friendly development: Visual configuration software with drag-and-drop widgets-no underlying coding required, beginners can build interfaces quickly

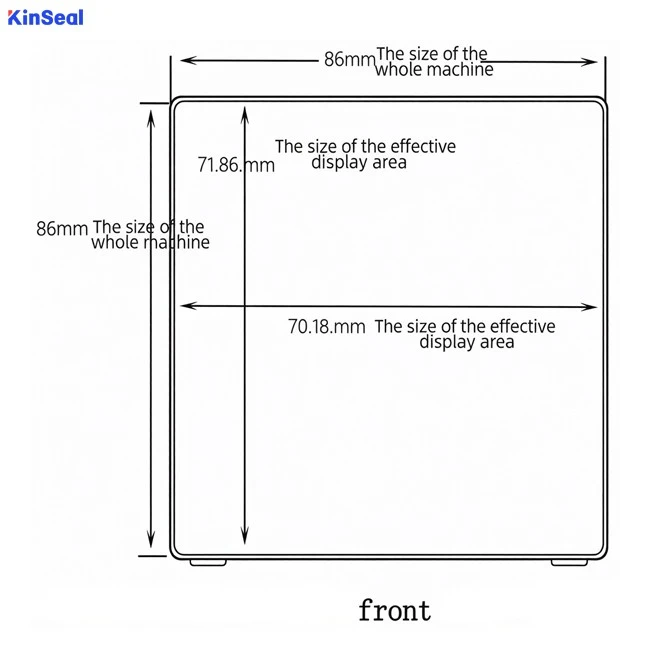

• Space-saving design: 86×86mm square housing matches standard switch panel dimensions for neat, coordinated embedded installation

Whether for small automation equipment, smart distribution boxes, environmental monitoring terminals, or building automation systems, this HMI adapts easily to enable fast visual control of your equipment.

Pre-Development Checklist

1. Software setup: Download and install HMIStudio_Setup_V5.1. Select the corresponding model when creating a new project. Serial Port 1 defaults to RS485 and can be switched to other protocols as needed.

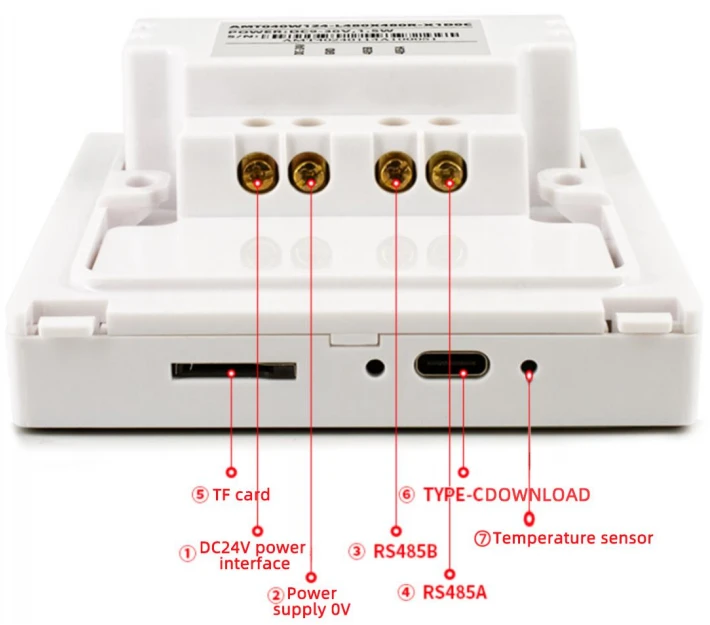

2. Hardware connection: Connect terminal ① to 24V+, ② to 0V, ③ to RS485B, and ④ to RS485A. The TYPE-C port connects directly to a PC for program download; TF card supports offline flashing.
3. Functional boundaries:

   Storage: 16MB SPI NOR Flash; supports up to 200 recipes, 512 digital alarms, and 32 conditional alarms

   Resource limits: Maximum 10 QR codes per screen, 1,000 total per project; up to 32 data acquisition tasks

   Unsupported features: USB flash drive read/write, power-off data retention. For long-term data storage, upload to a PLC or host PC

4. Debugging tip: Run offline simulation first to verify logic, then conduct online debugging with connected devices to significantly shorten development cycles
5. Reliability reference: Passed ESD, high/low-temperature aging, EFT, and lightning surge tests-reference designs can be reused directly for industrial applications
