Product Introduction
The 2.4 Inch Industry HMI is a complete display system with free design software; this provides an easy way to create intuitive, great touch user interfaces, even for beginners. This will reduce development time and costs by 90%. Secondly, our product can provide underlying driver support and has a very silky smooth interface. Finally, if you are interested in our products, please do not hesitate to contact us.
Product Feature
The 2.4 Inch Industry HMI can store your data, profiles, image files, font files, video files and audio files, etc. Secondly, our LCD touch screens make it easy to create intuitive touch interfaces even for beginners by adding image files as backgrounds and defining functionality by component. Finally, you can also edit resource properties to control states and cycles to create vivid and intuitive HMI interfaces.
Product Models
Module | Specifications |
AST024RTS | 2.4 inch serial LCD screen, DC5-24V, 16Mbyte Flash, TTL communication, With TP |
AST024RES | 2.4 inch serial LCD screen, DC5-24V, 16Mbyte Flash, RS232 communication, With TP |
AST024RDS | 2.4 inch serial LCD screen, DC5-24V, 16Mbyte Flash, RS485 communication, With TP |
Products Features
Power Voltage | DC5--24V |
Backlight Adjustment | Not supported |
Touch | 4-wire resistive touchscreen |
LCD resolution | 320X240; TN |
LCD | TN TFT LCD, 250cd/m2 |
Communication | TTL level serial port/RS232 communication/RS485 communication, TTL only supports 3.3V level |
Storage | 16Mbyte SPI Nor Flash |
Power Protection | To prevent the reverse, Distinguish the positive and negative poles of the power supply |
RTC | Support |
Save power failure data | Not supported |
Download | SD card |

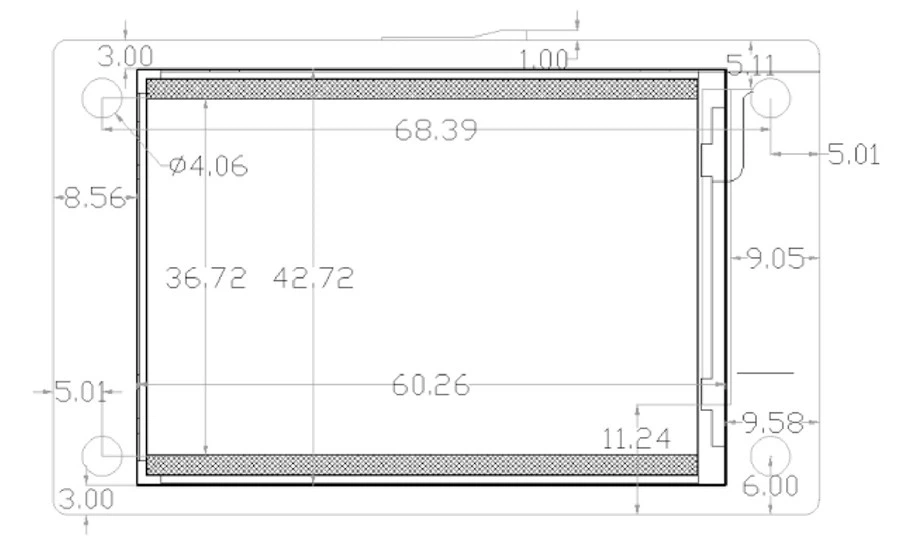

Products Size
Display Size | Product Model | Overall Dimension | Panel Cutout |
2.4 in. | AST024PA | 48.5mm×78.5mm×11mm | 36.5mm×68.5mm |
Products Parameters
Product Specification | ||
Hardware Performance | Module | AST024RTS/AST024RES/AST024RDS |
Display Size | 2.4" TFT LCD | |
Colors | 65535 | |
Brightness | 250 cd/m2 | |
Backlight | LED | |
LED life | 20000 hours | |
Touch screen | 4-wire resistive touch screen (Surface hardness 4H) | |
CPU | 96MHz M0 | |
Memory | 16Mbyte SPI NOR Flash | |
RTC | Real-time clock built-in | |
Ethernet | Unsupported | |
Save power failure data | Not supported | |
USB | Unsupported | |
Program download Mode | SD card | |
U disk | Not supported | |
Communication port | AST024RTS: A TTL serial communication | |
Electrical Specifications | Maximum power consumption | 0.5W |
The rated voltage | DC 5-24V | |
Environmental Specifications | Operating temperature | -20℃~50℃ |
Storage temperature | -40℃~70℃ | |
Environmental humidity | 10~90%RH(non-condensing) | |
Vibration | 10-25Hz (X, Y, Z direction, 2g/30 min) | |
The Other Parameters | Cooling way | Natural air cooling |
Panel Cutout | 36.5mm×68.5mm | |
Overall dimensions | 48.5mm×78.5mm×11mm | |
The weight | 35g | |

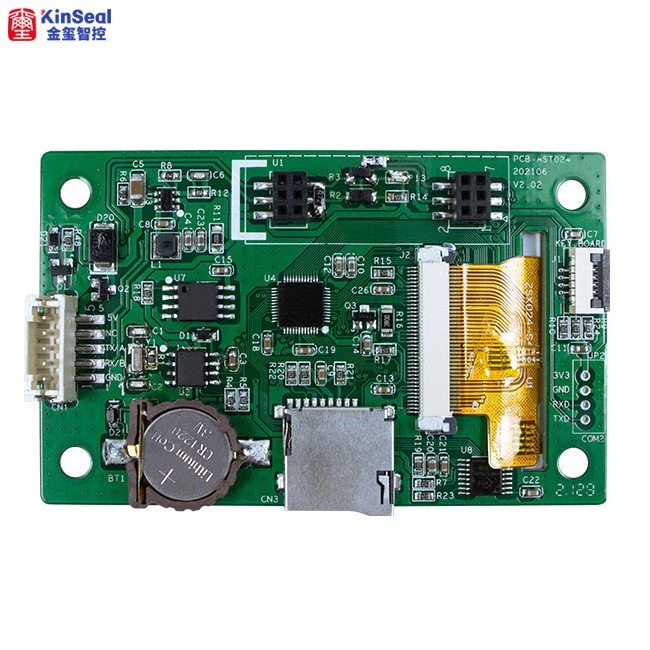

Hardware Introduction
Definition of Terminal Pin
FAQ
Can I get some samples for the test?
A: Yes, the sample order is available for quality check and market test.
Do you accept OEM/ODM?
A: Yes, we accept OEM/ODM with your authorization.
What's your warranty time?
A: We offer 18 months of warranty service and lifetime technical support.
Are you a manufacturer?
A: Yes, We are a professional manufacturer.
How does your factory do the quality control?
A: Quality is our culture. We have a strict quality control department to supervise each link from assembling to shipping.
How can I trust you?
A: Kinseal has 10 years of experience in producing inverters, we have passed the ISO9001 management system and got CE and CCC certificates.
Assessment reports can be sent anytime if you require.
