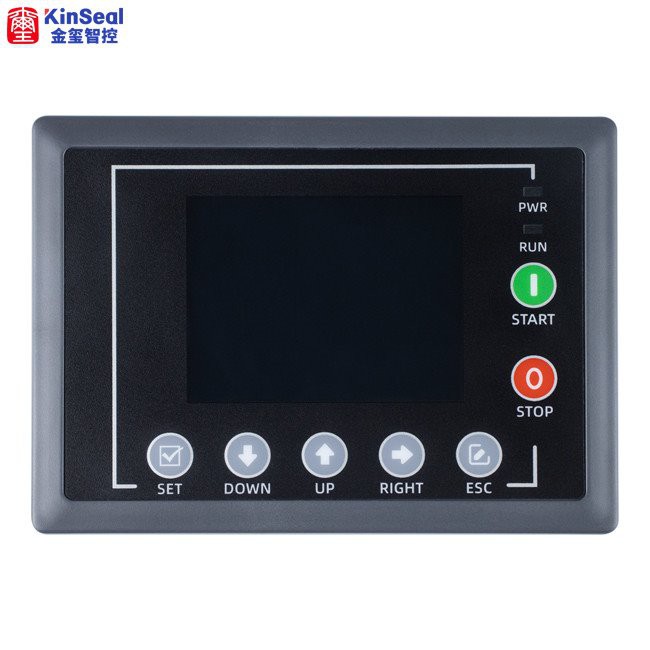

Product Introduction
The 2.8 Inch Industry HMI is easy to write a program, using the WINDOWS system to download the program and compile it. Secondly, our products also provide toolbox software for engineers to easily and intuitively set up various functions, such as text, numeric, and other application software, on the graphical user interface. What's more, engineers can easily adopt TFT-LCD color user interface and touch control function on various industrial equipment and also can reduce a lot of development time and cost. Finally, our products are inexpensive and good value, which is loved by our customers.

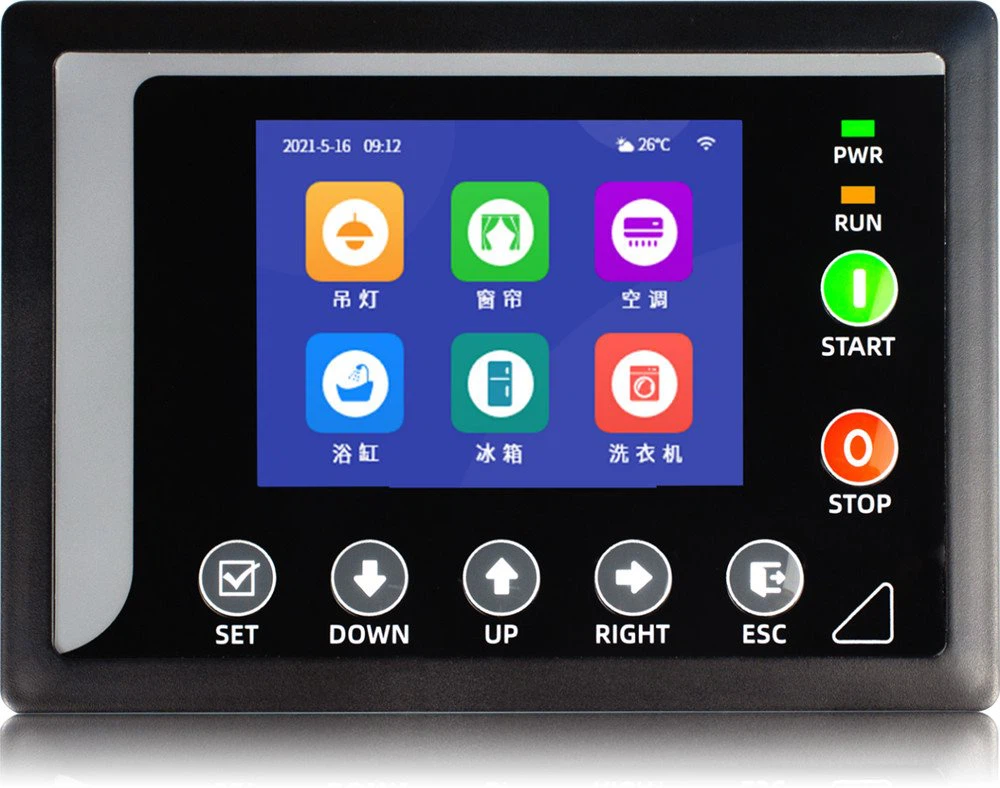

Product Feature
The 2.8 Inch Industry HMI provides control and visualization interfaces between people and processes, machines, applications, or devices. Secondly, we also have a huge number of components such as buttons, text, progress bars, sliders, and dashboards to enrich the interface design. What's more, we also have a very powerful editor that allows you to easily add audio, video, and animation resources to your HMI projects, control states, and loops by editing resource properties, and thus create vivid and intuitive HMI interfaces. Finally, our products have a long service life.
Product Model
ASTK028NGD
Model | Specifications |
ASTK028NGD | 2. 8 -inch serial LCD screen, 10-30V, 16Mbyte Flash, 485 communication, without TP |
ASTK028RGD | 2.8 inch serial LCD screen, 10-30V, 16Mbyte Flash, 485 communication, with TP |
Product Size
Display size | Product number | Overall size | Shell opening size | Recommended hole size | Maximum thickness |
2.8 inches | AST K 02 8NGD | 122mm × 88mm _ | 108mm × 74mm _ | 110mm × 76mm _ | 25.6mm |
Product Parameters
Product Specifications | ||
Hardware Performance | model | ASTK028NGD / ASTK028RGD |
display | 2.8" TFT LCD | |
color | 65535 | |
brightness | 250 cd/m2 | |
Backlight | led | |
LED life | 20,000 hours | |
touch screen | 4-wire industrial resistive touch screen (surface hardness 4H) | |
CPU | 96MHz M0 | |
memory | 16Mbyte SPI NOR Flash | |
RTC | not support | |
Ethernet | none | |
Power-off data saving | not support | |
USB port | none | |
Program download method | SD card download | |
U disk | not support | |
Communication port | RS485 serial communication | |
Electrical Specifications | rated power | 1.5W _ |
Rated voltage | DC 10-30V _ | |
Environmental Specifications | Operating temperature | -10℃~50℃ |
storage temperature | -30℃~70℃ | |
environment humidity | 10~90% RH (non-condensing) | |
shock resistance | 10-25Hz (X, Y, Z directions, 2g/30 minutes) | |
cooling method | natural air cooling | |
Overall size | 122mm×88mm | |
Shell opening size | 108mm×74mm | |
Recommended hole size | 110mm×76mm | |
Net weight of the whole machine | 40g _ | |

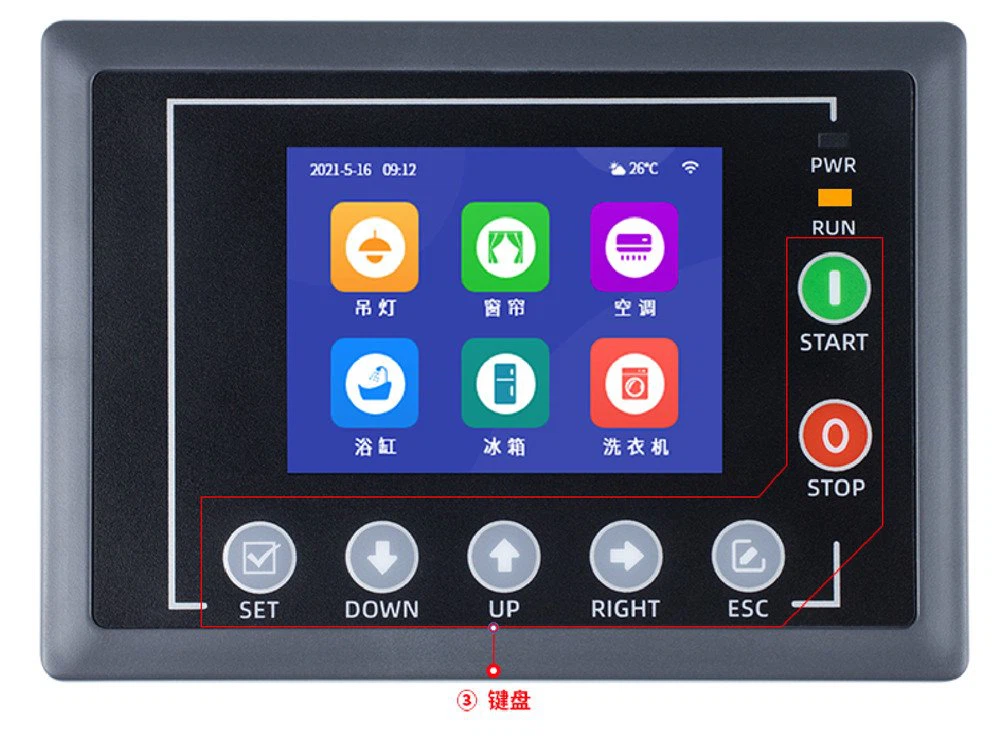

Terminal Pin Definition
